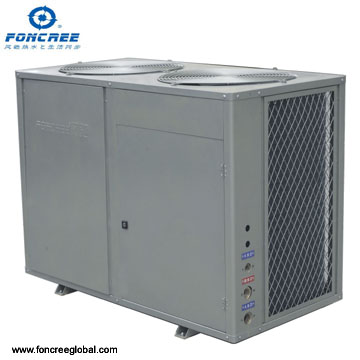

heat pump water heater air source heat water from China manufacturer - Shenzhen Foncree Heatpump Technology Co.,Ltd

Place of Origin:

Guangdong, China (Mainland)

Product Detail

Use: Swimming Pool

Application:
Indoor and outdoor swimming pool, SPA, constant temperature
Copeland Compressor,Safety and Long life,Exchanger,Electronic Expansion

Model No, Parameter	Unit	FC-KFXYC11Ⅰ	FC-KFXYC11 Ⅱ	FC- KFXYC 17 Ⅱ	FC- KFXYC 32 Ⅱ
Heat Capacity	KW	12	12	19	38
Heat Capacity	BTU/h	40900	40900	64800	129000
COP	—	4.5	4.5	4.5	4.5
Max Water Outlet Temperature	℃	Default 29 ℃,adjustable between 25 ℃~32 ℃
Power Supply	V/PH/Hz	220V/50Hz	380V-3N/.50Hz
Rated Input Power (Heating/Cooling)	KW	2.8	2.8	4.5	9.0
Rated Input Current (Heating/Cooling)	A	13.0	5.3	8.5	17.0
Max Input Power	KW	3.8	3.8	5.5	13.0
Max Input Current	A	17.2	7.2	13.0	24.6
Ambient Temperature	℃	-7~43
Heat Exchanger	—	Fin and Titanium in seamless stainless steel
Refrigerant/Volume	Kg	R407C/1.3		R407C/1.8	R407C/2*2.3
Compressor Type and Quantity	pcs	Copeland/1		Copeland/1	Copeland/2
Fan Quantity	pcs	1		1	2
Fan Air Flow Volume	m³/h	4000		7000	13000
Fan Direction	—	Over Head
Fan Power Input	W	50		250	250*2
Fan Rotation Speed	RPM	800		900	900
Noise	dB (A)	below 55		below 55	below 60
Pipe Diameter	mm	DN25		DN25	DN32
Discharge Pressure	Mpa	2.6
Suction Pressure	Mpa	0.3~0.8
Rated Water Pressure	Mpa	0.2~0.6
Max Water-in Pressure	Mpa	1.0
Min Water-in Pressure	Mpa	0.15
Hot Water Volume	L/h	790		1200	2500
Water Flow Volume	m³h	3.0		4.5	8.6
Net Weight	Kg	100		130	250
Shipping Weight	Kg	112		145	270
Product Dimension	mm	680680760		800800900	14007201050
Shipping Size	mm	735735815		855855955	14557751105
